Blue Exopy Coated Float Air Vent Valve With Ductile Iron Body , High Performance

  • 1
  • 2
  • 3

Brand Name : AFC OEM

Model Number : ARVS

Certification : WRAS

Place of Origin : China

MOQ : 1

Price : USD RMB

Payment Terms : L/C, T/T

Supply Ability : 60 days for two containers

Delivery Time : Based on order

Packaging Details : Plywood cases

Material : Ductile Iron GJS500-7

Float : Stainless Steel 304

Color : RAL 5010

Rubber : EPDM

O-ring : NBR

Connection : Thread

Contact Now









Blue Exopy Coated Float Air Vent Valve Thread Type BSPT Or NPT







Feature



• High grade ductile iron body, reduce the weight and much longer life than cast iron.
• Simple mechanism with lever and float.
• The float and internal mechanism are made of AISI 304 stainless steel and last for much longer life cycles.
• Longer service life due to epoxy coating for both inside and outside.
• Male connection can easily be connected to isolated valves, no need further nipples.
• BSPT or NPT thread end connection are available.



Description:



    ARVS-Single air release valve is genarally installed in the top of the pipeline, and used for exhausting the compressed air in pipeline system, generally there will be about 2% of dissolved air in water and it will release as bubbles and thru the air release valve nozzle. It can prevent the existence of bubble gap for flow, this can help a better efficiency for transmission of flow.





Material

Blue Exopy Coated Float Air Vent Valve With Ductile Iron Body , High Performance

No. Part Name Material Standard
1 Body Ductile Iron EN GJS500-7
2 Seat Rubber EPDM
3 Pin Stainless Steel AISI304
4 Bonnet Ductile Iron EN GJS500-7
5 Small Nozzle Stainless Steel AISI304
6 Hex Bolt Stainless Steel AISI304
7 Washer Stainless Steel AISI304
8 O-ring Rubber NBR
9 Support Plate Stainless Steel AISI304
10 Hex Bolt Stainless Steel AISI304
11 Float Stainless Steel AISI304

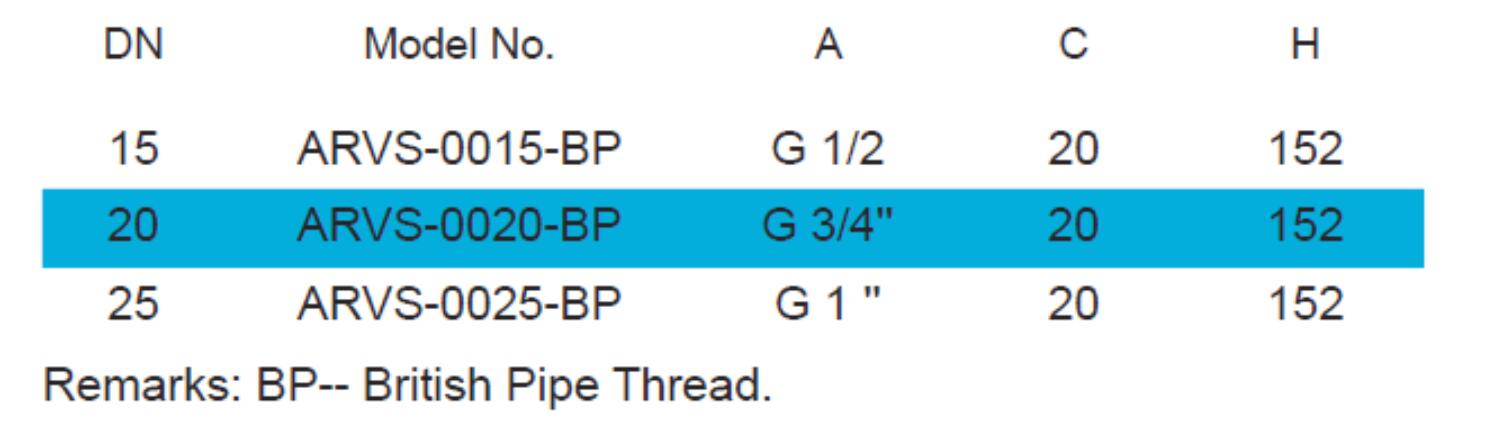

Dimension



Blue Exopy Coated Float Air Vent Valve With Ductile Iron Body , High Performance

Blue Exopy Coated Float Air Vent Valve With Ductile Iron Body , High Performance





Air Flow Characteristic



Blue Exopy Coated Float Air Vent Valve With Ductile Iron Body , High Performance
