Ductile Iron Resilient Seated Gate Valve Rising / No - Rising Stem AWWA Standard

Name: Ductile Iron Resilient Seated Gate Valve Rising No Rising Stem AWWA Standard
Brand: AFC, OEM
Price: 1 USD

Buy cheap Ductile Iron Resilient Seated Gate Valve Rising / No - Rising Stem AWWA Standard product

Brand Name : AFC, OEM

Model Number : GBHX, GBCX, GBBX

Certification : ISO9001, EN1074-2

Place of Origin : China

MOQ : 1

Price : Price negotiable

Payment Terms : L/C, T/T

Supply Ability : 60 days for 2 containers

Delivery Time : Based on order

Packaging Details : Plywood cases

Operator : Handwheel

Valve Body : Ductile Iron GJS500-7

Wedge : Ductile Iron With Vulcanized Rubber

Guide : Nylon 66

Color : Red, Blue

Powder : WRAS Approved

Contact Now

Ductile Iron Resilient Seated Gate Valve Rising Or No - Rising Stem AWWA Standard Available

Features:

1. Conform BS5163, EN1074-1 and EN1074-2 standard.

2. Over torque can be 5 times without deformation.

3. External pressure test to prevent vaccum happnened when water stops in pipe line. No sucking dirt or sand from outside of the valve.

4. Low operation torque.

5. Online repair by 5 pcs of o-rings for stem seal.

6. AWWA flange is avaliable.

Spec:

Size	DN50-DN600
Working Temperature	- 10C- 80C
Flange	PN10/16
Flow Media	Water, Sewage Water
Face to Face	EN558-1

Production Process:

1. Sandblasitng - Clean the rusty casting and give enough roughness for casting.

2. Coating - Fusion Bonded EPOXY - WRAS, NSF approved

3. Assembling - By qualified workers

4. Testing - 100% tested with shell (1.5 * PN) and seat test (1.1 * PN)

5. Packing - Plywood crates.

Ductile Iron Resilient Seated Gate Valve Rising / No - Rising Stem AWWA Standard

DN	L	H1	H2	ΦB	ΦD		ΦK		N-Φd		C		ΦF
DN	L	H1	H2	ΦB	PN10	PN16	PN10	PN16	PN10	PN16	PN10	PN16	ΦF
50	178	240	255	99	165		125		4-Φ19		19		180
65	190	258	280	118	185		145		4-Φ19		19		180
80	203	293	311	132	200		160		8-Φ19		19		200
100	229	326	340	156	220		180		8-Φ19		19		200
125	254	377	386	184	250		210		8-Φ19		19		250
150	267	414	430	211	285		240		8-Φ23		19		250
200	292	510	550	266	340		295		8-Φ23	12-Φ23	20		300
250	330	585	628	319	395	405	350	355	12-Φ23	12-Φ28	22		350
300	356	663	703	370	445	460	400	410	12-Φ23	12-Φ28	24.5		350
350	381	880	930	429	505	520	460	470	16-Φ23	16-Φ28	24.5	26.5	450
400	406	990	1040	480	565	580	515	525	16-Φ28	16-Φ31	24.5	28	450

Product Tags:

Ductile Iron Resilient Seated Valve

AWWA Resilient Seated Gate Valve

Nylon 66 Resilient Seated Gate Valve

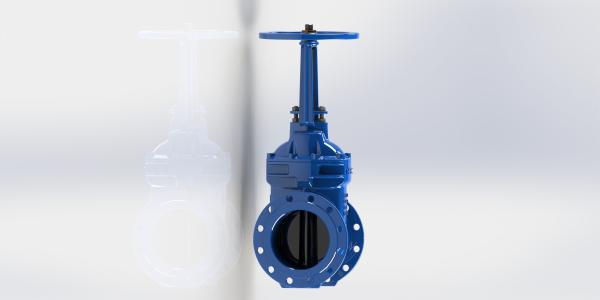

Ductile Iron Resilient Seated Gate Valve Rising / No - Rising Stem AWWA Standard Images
